Habotest HT820 portable high-precision rapid-response plug-and-play thermal image camera with a resolution of 256*192, which is superior to that of

MOQ : 1-50pcs

Payment Terms : T/T

Delivery Time : 15-30 work days

Contact Now

Overview

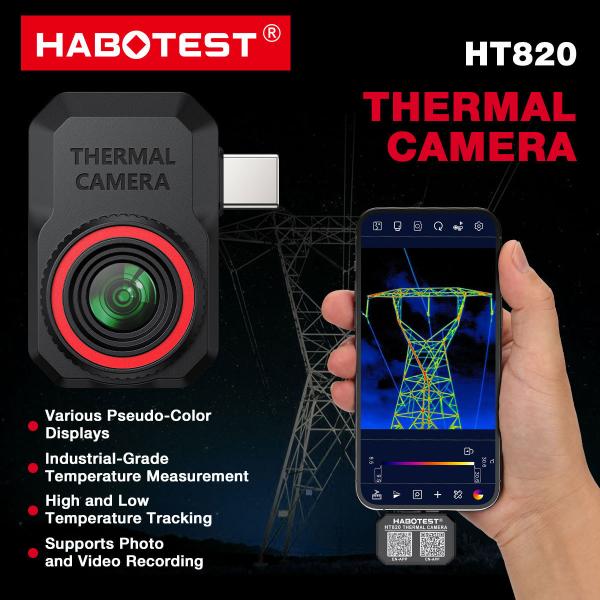

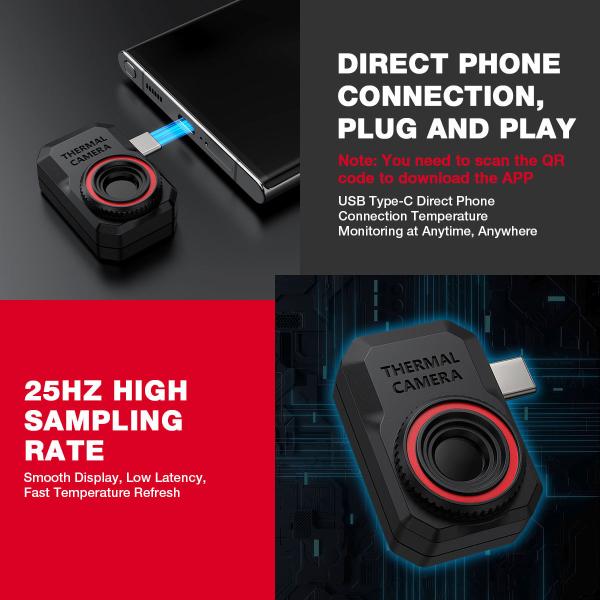

The mobile phone infrared thermal imager uses an industrial-grade infrared detector with small pixel spacing and high resolution, and is equipped with a 3.2mm lens. It is a high-precision and fast-response portable infrared thermal imaging analyzer. The product is lightweight, portable, plug-and-play, and with a customized professional-grade thermal imaging analysis APP, it can be connected to a mobile phone to perform infrared imaging of target objects, making it possible to conduct multi-mode professional thermal image analysis anytime and anywhere.

Feature
  • High-quality optical lenses and high-resolution detectors provide excellent imaging effects;
  • Lightweight and portable, it can be used with mobile APP to conduct professional thermal imaging analysis anytime and anywhere;
  • Wide temperature measurement range: -15℃～600℃;
  • Support high temperature alarm and customize alarm threshold;
  • Supports the display of customized temperature range screens, and there are many usage scenarios for displaying high-temperature areas;
  • Support high and low temperature tracking;
  • Support adding points, lines, and rectangular frames for regional temperature measurement. Lines and rectangular frames support high and low temperature tracking and high temperature alarms;
  • High-quality ABS shell, sturdy and durable.
Performance
Parameter Value
Brand HABOTEST
Product name Mobile phone infrared thermal imager
Color black
Shell material ABS shell
Resolution 256x192
Working wavelength 8～14 μm
Frame rate 25Hz
NETD ＜50mK @25℃
Lens 3.2mm
Field of view 56° x 42°
Temperature measurement range -15℃～600℃
Temperature measurement accuracy ±2℃ or ±2% of reading
Temperature measurement supports automatic tracking of high and low temperatures, center point temperature measurement, point temperature measurement, regional temperature measurement, line temperature measurement, and temperature range viewing
High-temperature quick search Supports one-click quick search of high-temperature areas.
Interval display temperature supported
Real-time image flipping supported
Image swatches Iron Red, White Hot, Black Hot, Rainbow, Red Hot, Cool Blue
Taking photos Support taking photos
Video support video
Image editing supports picture graffiti and text notes
Settings Thermal imaging professional parameter configuration, temperature unit, language, high temperature alarm settings.
Working temperature -10°C ~ 75°C
Storage temperature -45°C ~ 85°C
Waterproof and dustproof IP54
Product size 34x 26.5x 15mm
Net weight 17 g
Packing list
  • 1 X Mobile Phone Thermal Imager
  • 1X data cable
  • 1 X English manual
  • 1 X storage box
  • 1 X packaging box
